PCT 10D SERIES

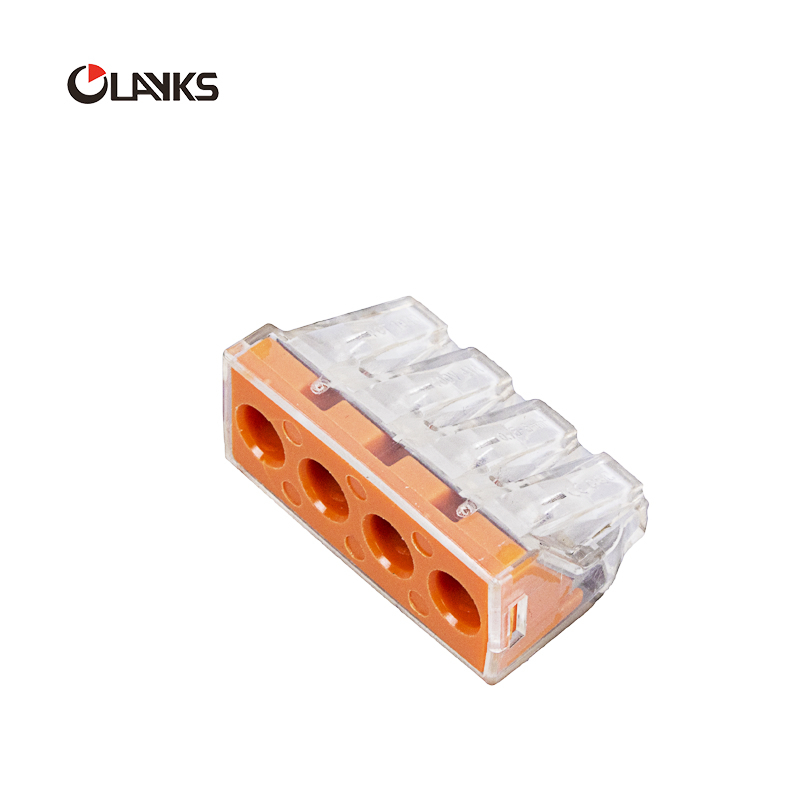

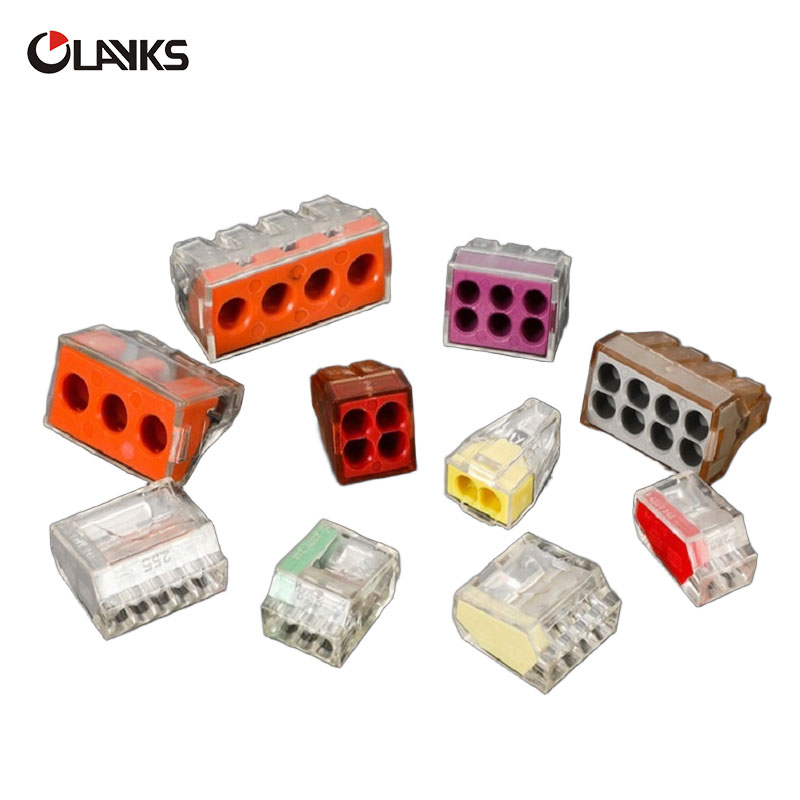

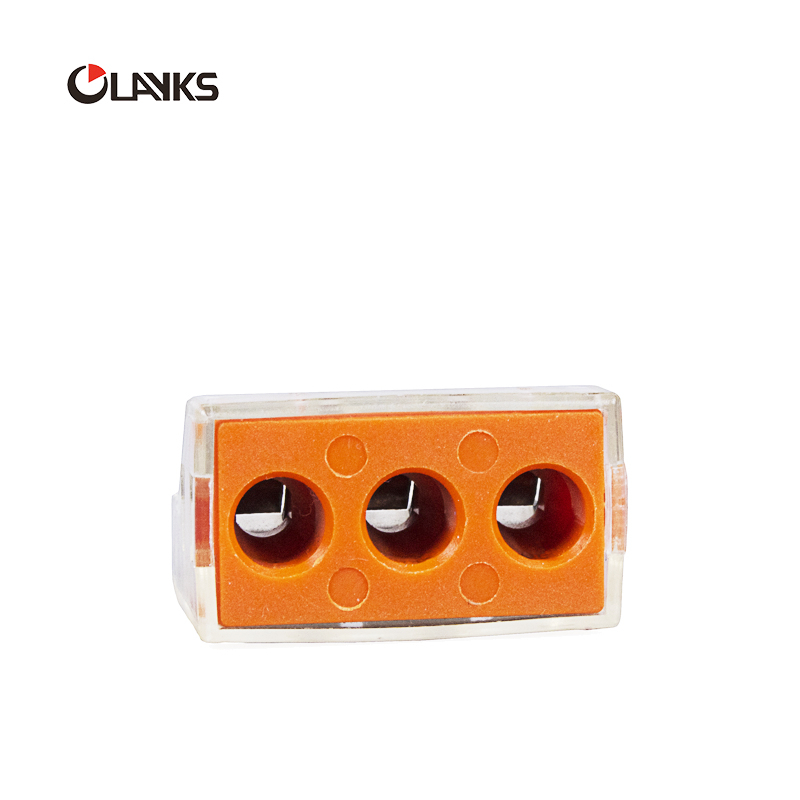

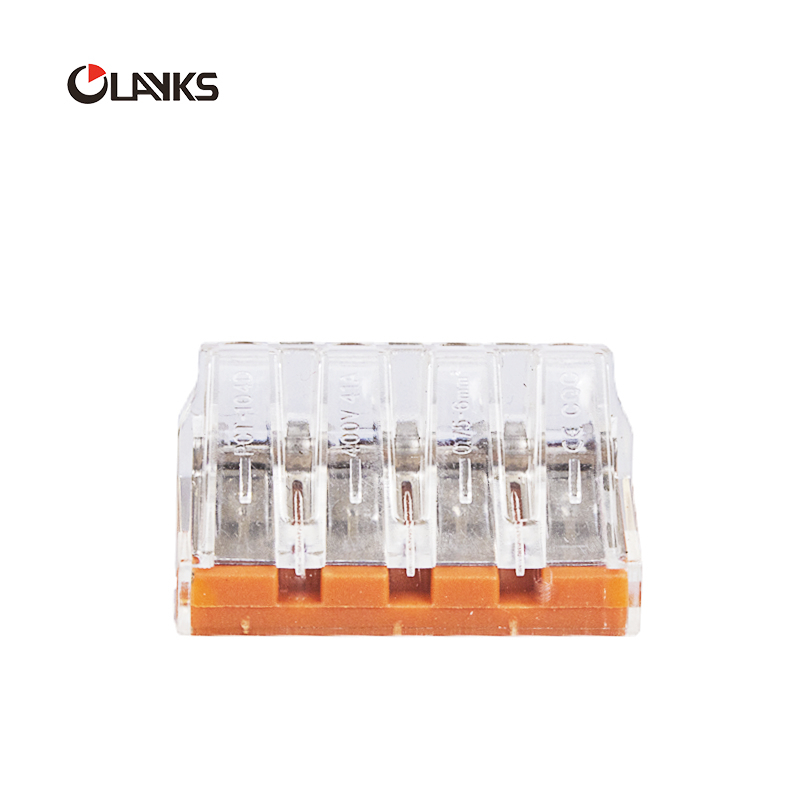

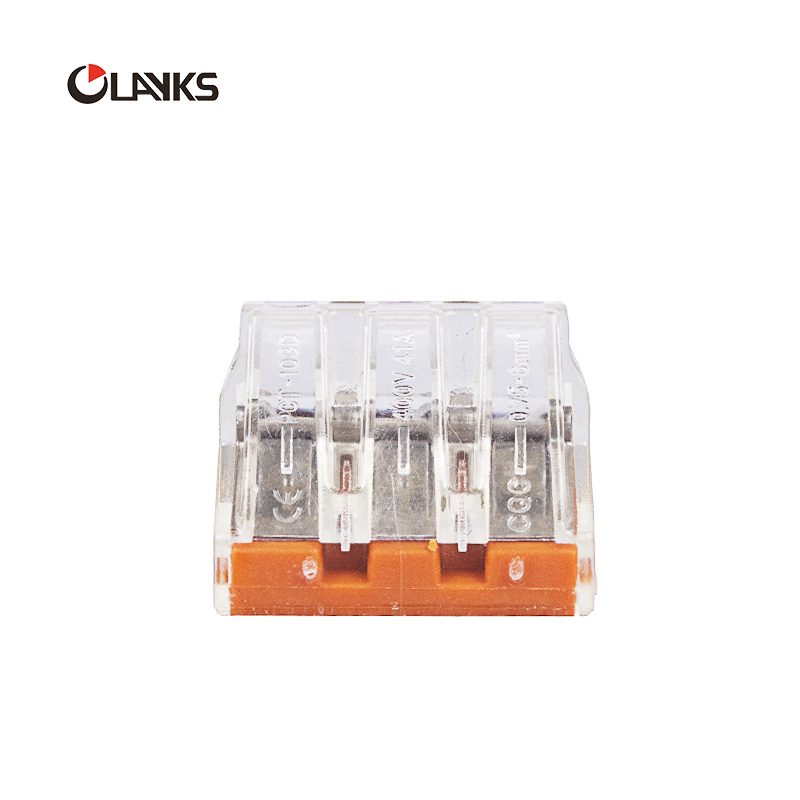

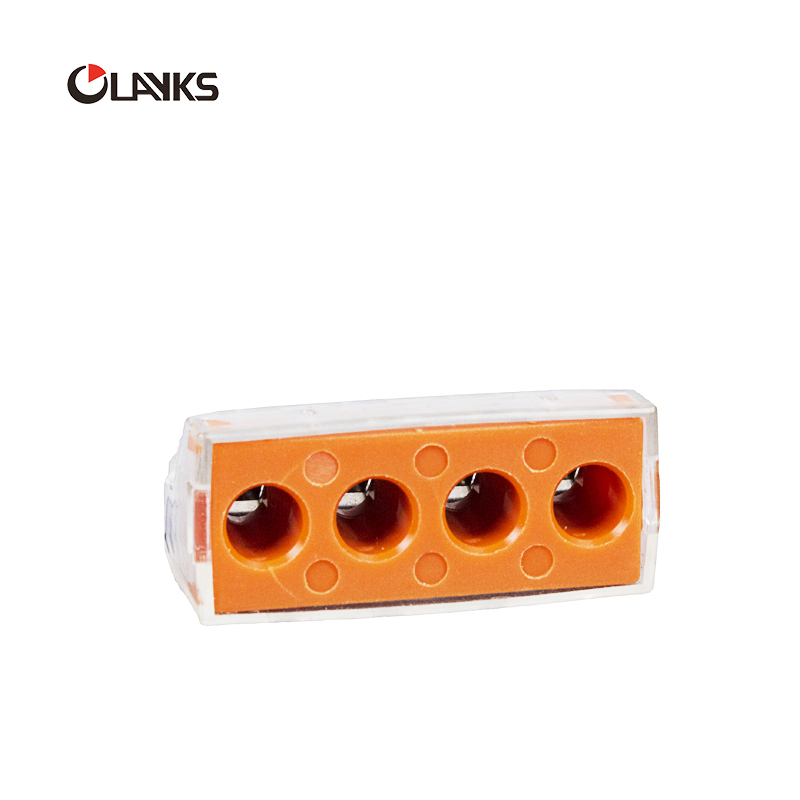

(1) High-performance 3-port and 4-port push-in wire connectors: Engineered for quick, secure electrical connections without the need for tools, simplifying installation across diverse scenarios.(2) Compatible with solid wires (2.5–6mm² / AWG14–10) and stranded wires (2.5–4mm² / AWG14–12), rated 400V and 41A to ensure reliable power transmission.(3) Constructed with durable nylon + PC housing and a clear cover, allowing easy visual inspection of connections for added safety and peace of mind.(4) Ideal for residential, commercial, and industrial wiring projects—offering a robust, efficient solution for consistent electrical performance.

MAKE A QUOTE

Description:

Total number of connection points	3
Total number of potentials	1
Color	transparent
Pollution degree (1)	2
Rated voltage EN (1) [V]	400	V
Rated surge voltage (1) [kV]	4	kV
Nominal current [A]	24	A
Connection technology (1)
Solid sizes 1	0.75 … 2.5 mm² / 18 … 12 AWG
Strip length 1	12 mm / 0.47 in
Type of wiring	Side-entry wiring
Weight [g]	1.847	g
Width	9.2 mm / 0.362 in
Height	13.1 mm / 0.516 in
Length	19.5 mm / 0.768 in
Safety information 1	In grounded power lines
