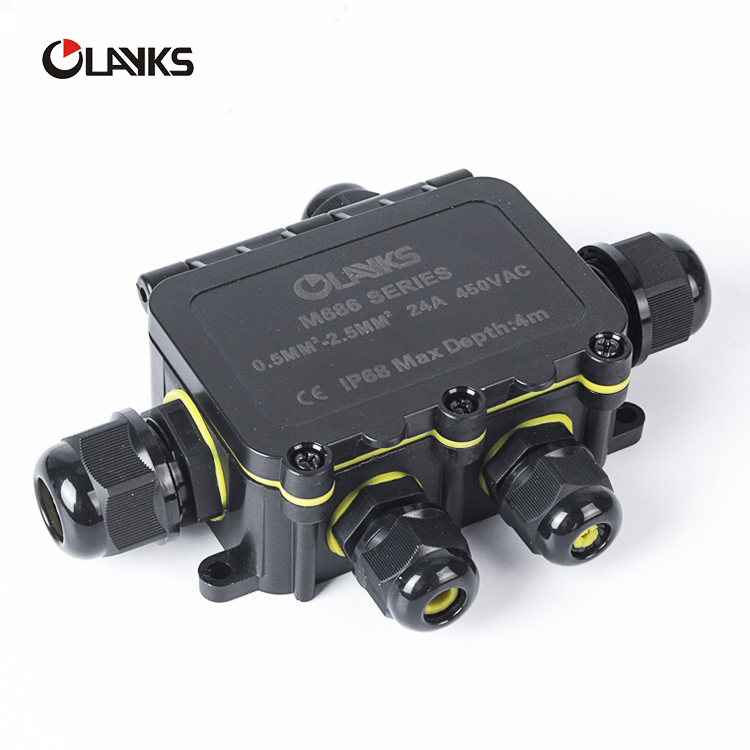

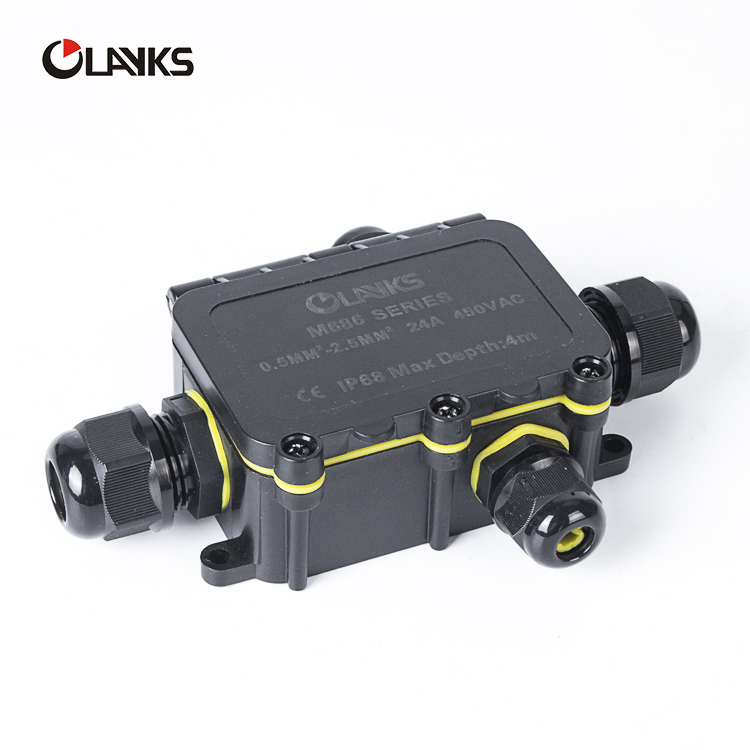

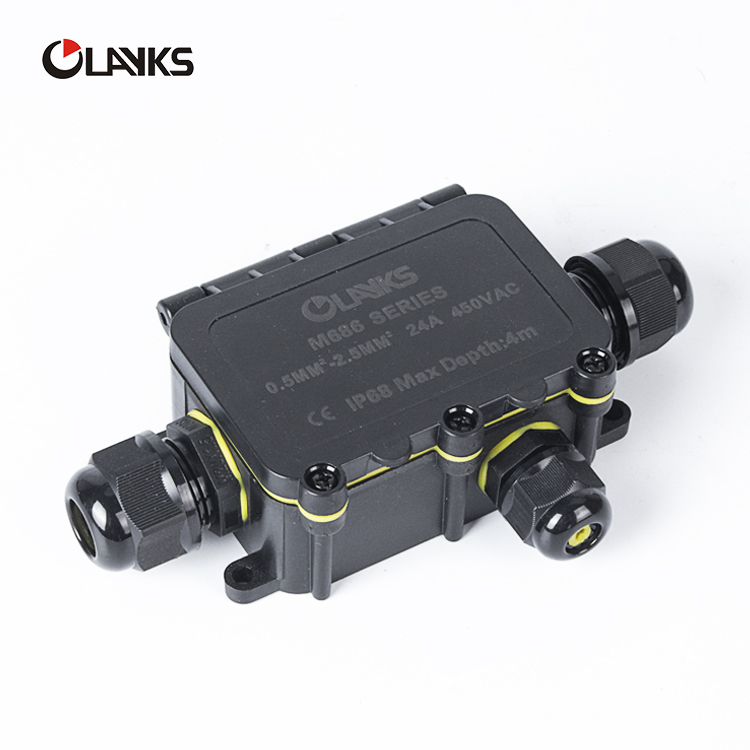

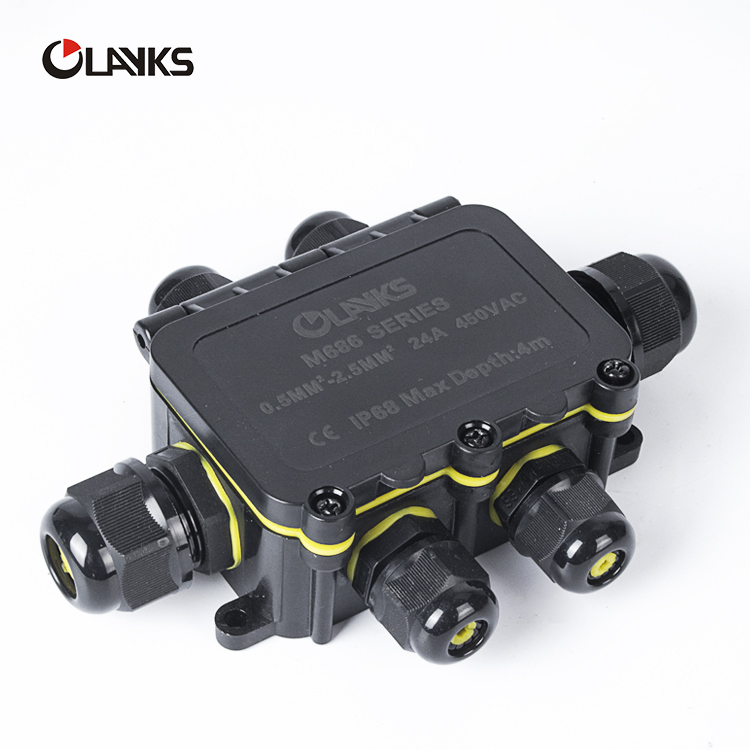

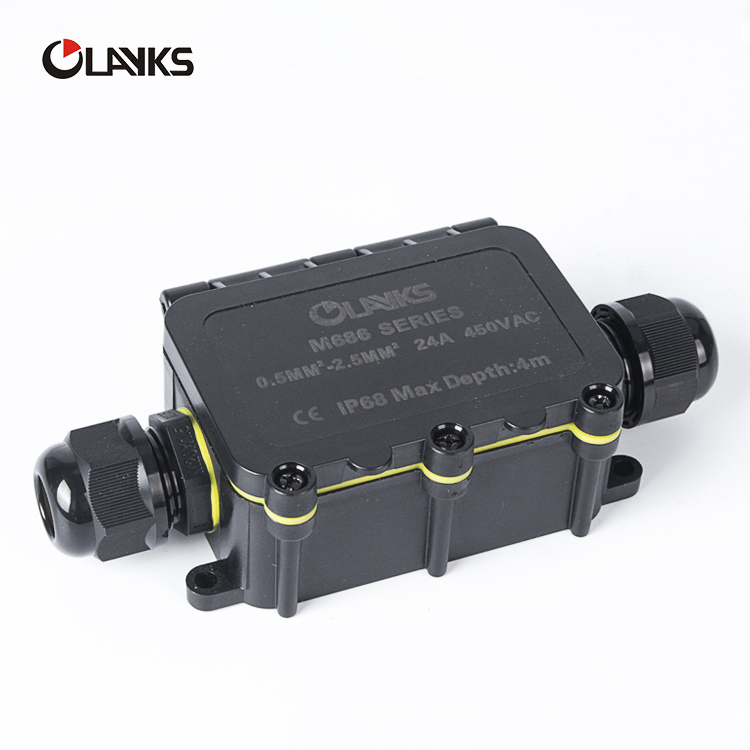

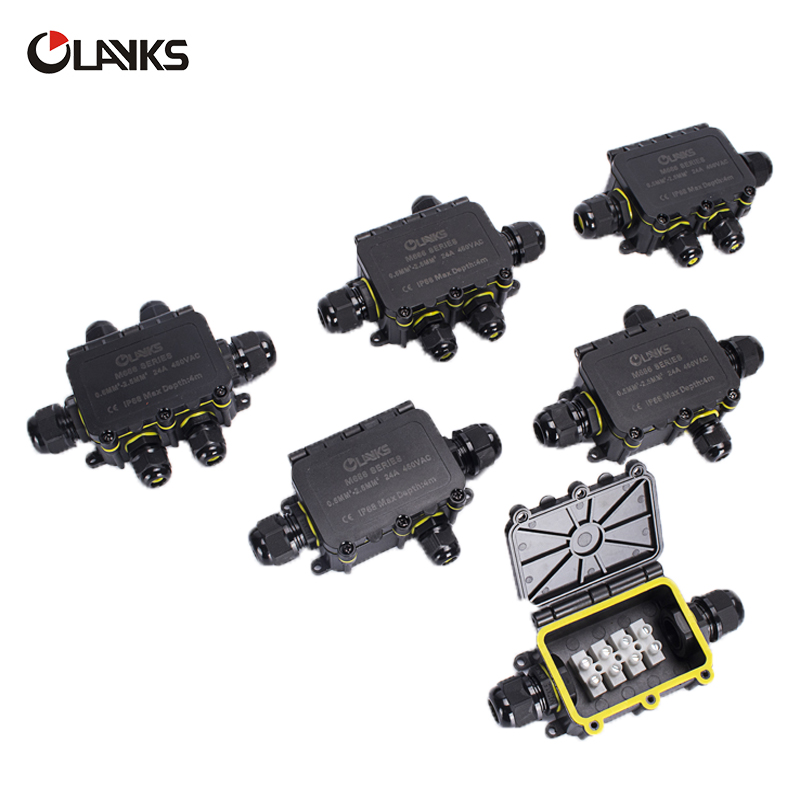

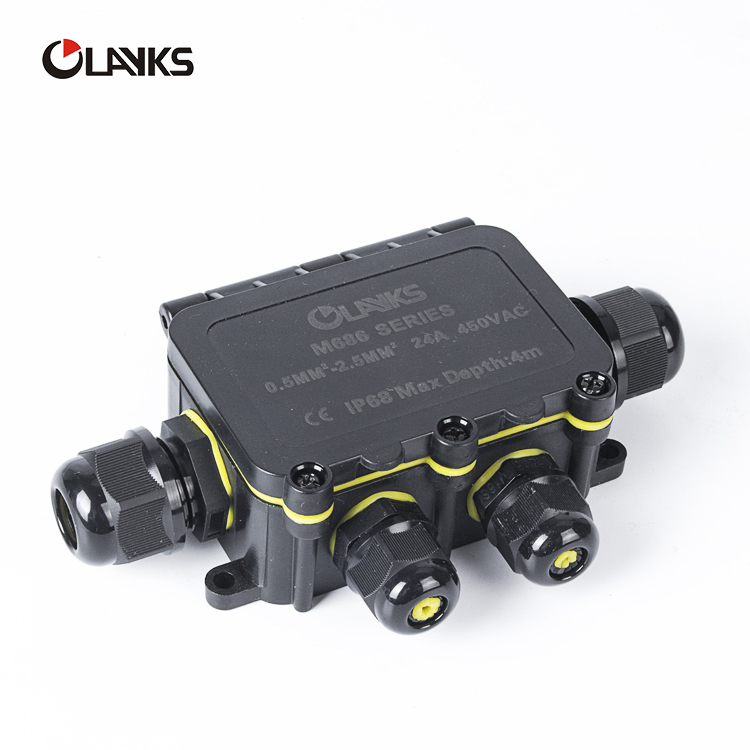

(1) The Olayks M686-2T 2-way waterproof junction box is designed for secure cable connections in harsh outdoor environments.
(2) With an IP68 rating, it offers complete protection against water and dust, making it ideal for garden lighting, underground wiring, marine projects, and industrial electrical installations.
(3) Built from durable PC material and equipped with screw-in cable glands, it supports up to 40A/450VAC and works in extreme temperatures from -40°C to +105°C.
(4) Certified by CE for reliable and safe performance.
| IP level | IP68 | Type | ip68 waterproof junction box |
| Place of Origin | Zhejiang China | Brand Name | OLAYKS |
| Model Number | GM2068-2T | External Size | 81.9x53.9x37mm |
| Material | PC | Connector Color | Black |
| Keywords | ip68 waterproof outdoor junction box | Certificate | SAA,ETL/ENEC/UKCA/CE/NSW/CB/TUV/ROHS |
| Operating Rating | -40℃ - +105℃ | Ampere/Voltage | 40A/450V |
| Outer Cable Diameter | M20:5-9mm;9mm-12mm/M16:3.5mm-7.0mm;7mm-10mm | Wire Section | 0.5mm2-4.0mm2 |
Housing | 94V-2 | IP rating | IP68 |
| Function | Flame Retardant |
