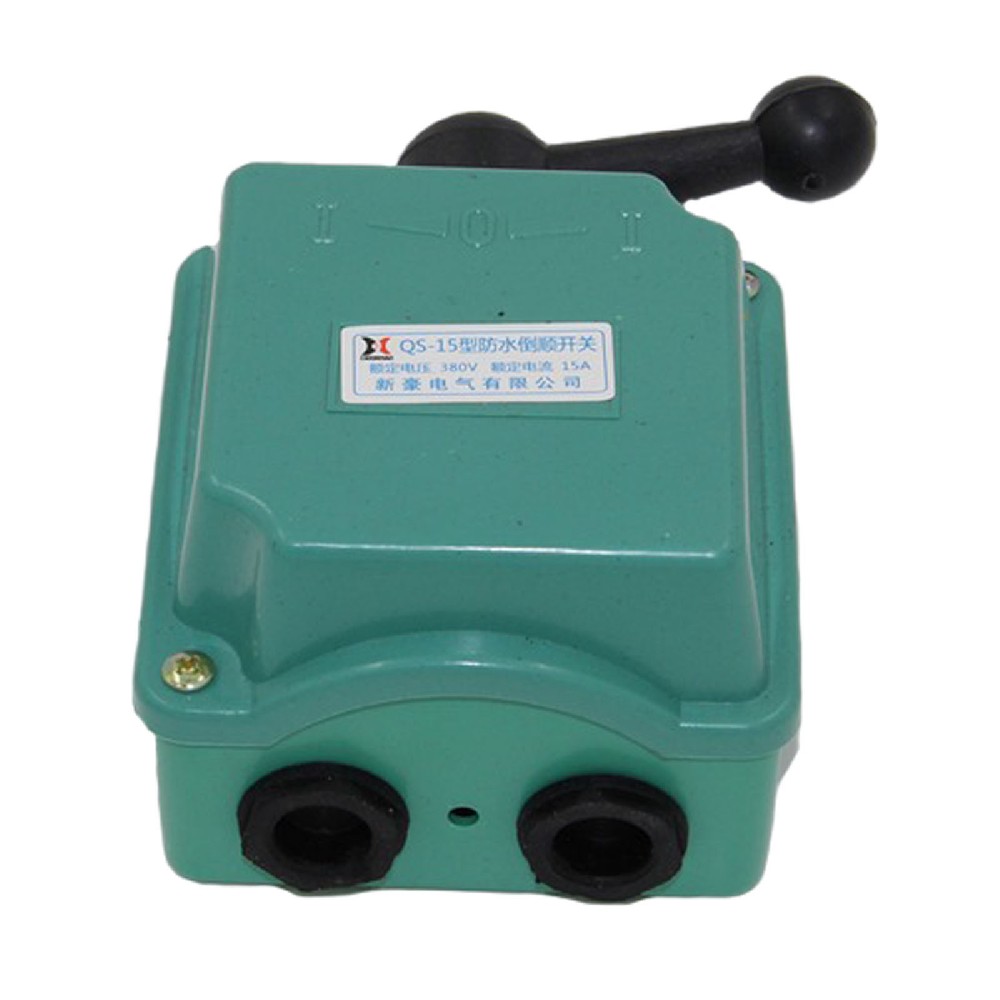

QS-15 AC 380V15A 3 Position Rain Proof Forward Reversing Motor Drum Switch
Product Configuration:
- 100% Brand new and high quality
- Product Name：Forward Reversing Drum Switch
- Model:QS-15
- Rated Working Voltage:380V
- Rated Working Current:15A
- Rated Frequency:50Hz
- Motor Control Rated Capacity:1.7KW
- Protection class:IP44
- Overall Size:9.8 x 9.2 x 6.5 cm / 3.8" x 3.6" x 2.5" (L*W*H)
- Material:Plastic, Metal, Electric Part
- Color:As Picture Shown
- Net Weight:360g
Descriptions:
- QS-15 series reversing drum switch cam starter is mainly used to start forward or backward and stop directly three-phase asynchronous electric motor with AC 50Hz, voltage up to 500V and capacity up to 1.7KW.
- Switch by the handle, the cam, the contact form.
- 3 groups contacts.
- Work for start, operate, stop and reverse, mainly use for direct make-and-break squirrel-cage induction motor, use in the circuit of AC 60Hz, rated operating voltage to 380V and rated operating current to 15A.
package included:
1 x QS-15 AC 380V15A 3 Position Rain Proof Forward Reversing Motor Drum Switch
